3.5 Inch 320X480 TFT LCD Module Touch Panel SPI ST7796 Pcap Monitor

Product Categories

Hotdisplay Technology Co.Ltd

Contact Now

3.5 Inch 320X480 TFT LCD Module Touch Panel SPI ST7796 Pcap Monitor

Name: 35 Inch 320X480 TFT LCD Module Touch Panel SPI ST7796 Pcap Monitor
Brand: HOTHMI
Price: 1 USD

Wholesale 3.5 Inch 320X480 TFT LCD Module Touch Panel SPI ST7796 Pcap Monitor from china suppliers

Brand Name : HOTHMI

Model Number : TFT-H035A11HVTST4C15

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Product Type : TFT Vertical Screen

Display content : 320x480 dots

Driver chip model : ST7796, FT6336G

Viewing angle : 12H viewing angle

Backlight brightness : 400cd/m2

Working temperature : -20~70℃

Contact Now

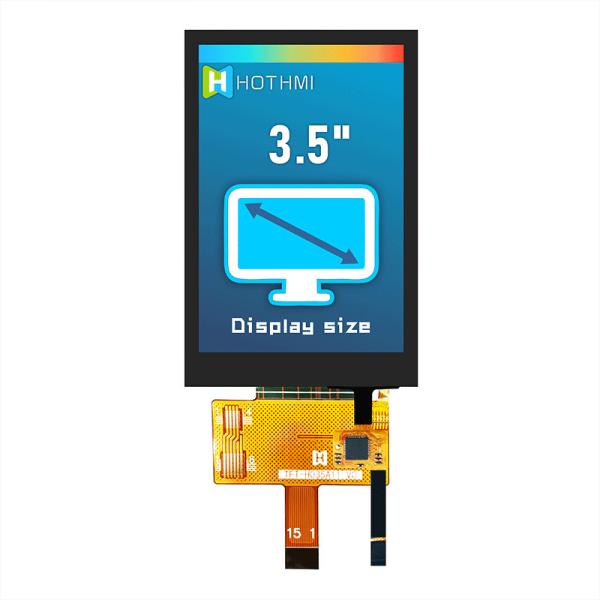

3.5 Inch 320X480 TFT LCD SPI ST7796 Capacitive Touchscreen/TFT-H035A11HVTST4C15

Dimensions (mm) - 54.66 x 83.0 x 3.80
Viewshed window size - 3.5 inch
Display Size - 3.5 inches
Effective Dimensions (mm) - 48.96 x 73.44
Product Application - Outdoor Instrumentation
Connection method PIN number - 15PIN
Interface method - SPI interface
Special instructions - FT6336G with CTP capacitive touch chip
Supply voltage - 3.3V

General Feature

Item	Standard Value			Unit
Display Size	3.5			Inch
Number of Pixels	320(H)3(RGB) 480(V)			dots
Active Area	48.96(H)* 73.44(V)			mm
Outline Dimension	55.40(H) * 85.16(V) * 4.05(D)(V0-2)			mm
Viewing Direction	12 O'Clock (U60/D60/L70/R70)			-
Interface	SPI 3-Line or 4-Line Serial interface			-
Driver IC	ST7796			-
Driver Condition	IOVCC=1.8V,VCI=2.8V or 3.3V(Typ)			V
Backlight	White LED/6 PCS/1 PCS serial 6 ways parallel			-
Touch Panel	Without TP	With RTP	With CTP	-
CTP Driver IC	FT6336G(V0-2)			-
CTP Driver Condition	VDD=3.3V			V
TFT Operation AT	-20 ～ +70			℃
TFT Storage AT	-30 ～ +80			℃

Pin Description

Pin NO.	Symbol	Description
1	LEDK	LED cathode
2	LEDA	LED anode
3	GND	Power supply ground
4	SPI	3-wire and 4-wire SPI interface selection
5	RESX	Reset signal. Signal is active low
6	SPI-SDA	- Serial interface data input/output pins. - The data is latched on the rising edge of the SCL signal.
7	SPI-SCL	Serial Interface Clock
8	SPI-D/CX	Serial interface data/command selection pin
9	SPI-CSX	Chip selection pin.Low enable.
10	VCI	Power supply
11	CTP-VDD	CTP Power supply
12	CTP-SCL	CTP I2C clock signal
13	CTP-SDA	CTP I2C data signals
14	CTP-INT	CTP interrupt signal
15	CTP-RES	CTP Reset pin
